Eurocopter Bo105 DBS-4
(UK Night VMC)

Serial Number 656
Exterior

SPECIFICATIONS

Date of Manufacture: 1984
Total Airframe Hours: 5,520


Optional Equipment

Dual Controls Stretcher Rails x2
Cargo Hook (Fixed Fittings) Crew Windshield Wipers
Heating/Ventilation Engine Fuzz Burners
Bolster (R/H) Rear Troop Seat
Flight Instruments with No.2 Horizon Engine Fire Extinguishers
Rotor Brake Crew High Back Seats
Hobbs Meter .

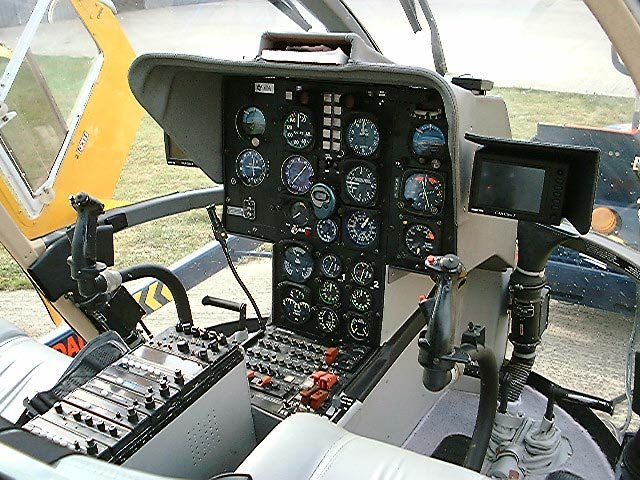

Panel

Avionics

VHF Comm 1 King KY 196A
VHF Comm 2 King KY 196A
VHF Nav 1 King KN 53
VHF Nav 2 King KNS 80
(incl VOR, DME, ILS etc)
ADF King KR 87
Transponder King KT 76A
Radar Altimeter King
GPS Trimble Transpack 2
Intercomm 5 Place
Slaved Compass King KCS-55A
Audio Select (x3) NATS 97
Interior

Exterior
Yellow

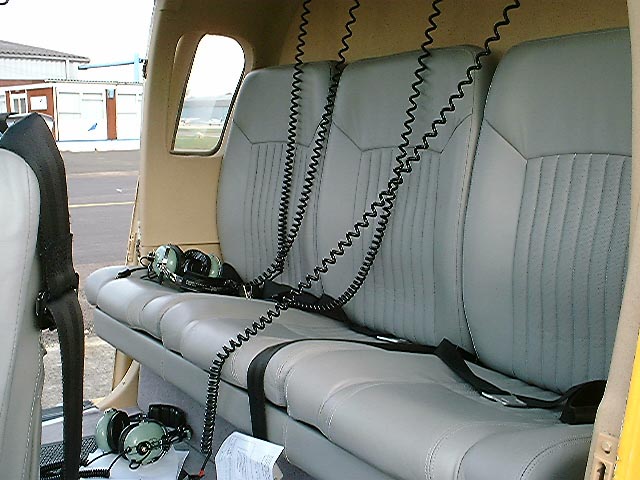

Interior
New corporate interior

Location
United Kingdom

Details believed to be correct but subject to verification by inspection.

Component Status
(as at 5,520 airframe hours)

Item Life Hours
Remaining
Main Rotor Blades x4 OC OC
Main Rotorhead Inspection 4,800 / 72 months 4,655 / March 2007
Main Rotor Shaft Retire 12,000 6,480
Hydraulic Pack Inspection 1 year TBA
Flat Springs Retire 1,200 1,199
Main Transmission Overhaul 3,000 795
Intermediate Gearbox Overhaul 3,600 2,060
Tail Rotor Blades OC 144 TTSN
Tail Rotor Gearbox Overhaul 3,600 3,529
Tail Rotor Head Assembly OC OC

Engines Life Hours Remaining
No.1 No.2
Compressor Assembly 3,500 3,344 352
Impellor 3,550
(9,150 C)		 3,394
(8,689 C)		 401
(1,848 C)
HMI 1,750 736 1,189
Turbine Assembly 3,500 1,094 1,697
FCU 2,500 1,796 823
PTG 2,000 1,746 640
Fuel Pumps 4,000 3,918 2,100
Starter Generator 1,000 234 940
Wheel No 1 1,775
(3,000 C)		 761
(795 C)		 1,214
(1,716 C)
Wheel No 2 1,775
(3,000 C)		 761
(795 C)		 1,214
(1,716 C)
Wheel No 3 4,550
(6,000 C)		 2,144
(828 C)		 2,747
(1,724 C)
Wheel No 4 4,550
(6,000 C)		 3,536
(3,795 C)		 2,747
(1,724 C)
Bleed Valve 1,500 1,174 1,246
Fuel Nozzle 2,500 45 895
MGB Drive Shaft 3,000
72 months		 1,830
Jun 2003		 1,830
Jun 2003
