1976 Bell 206B
JetRanger II |
SPECIFICATIONS
| Date of Manufacture: |
1976 |
| Total Airframe Hours: |
7,905
|
Optional Equipment
| Dual Controls |
High Skids with Flitestep |
| Range Extender |
Rotor Brake |
| Wedge Windows (front & rear) |
Sloping Avionics Panel |
| High Intensity Strobe |
Door Openers |
| Floor Protectors |
. |

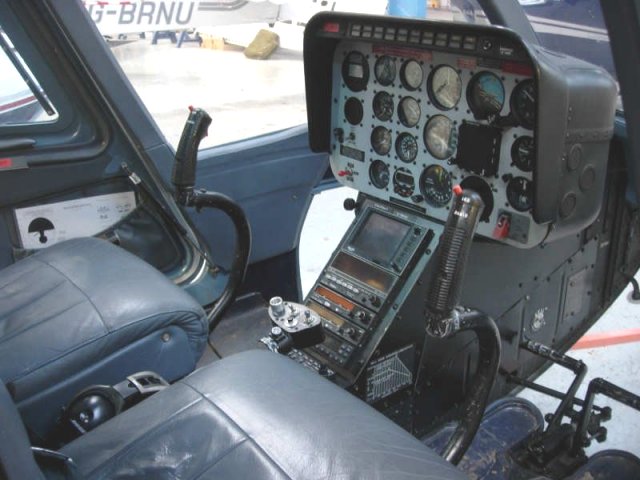

Avionics
| EHSI Nav System |
Sandel SH 3308 |
| VHF Comm 1 |
Bendix King KY 196A |
| VHF Comm 2 |
Bendix King KY 196A |
| Nav System |
Bendix King KNS 80 |
| Digital Transponder (with Mode C) |
Garmin GTX327 |
| GPS Colour Multifunction Display |
Bendix King KMD 150 |
| Radar Altimeter |
Bendix King |
| Audio Panel LED Illuminated |
Garmin GMA 340 |
| Chronometer |
Astro LC2 |
Exterior
Base metallic black/silver. Green/red/blue metallic stripes.
Interior

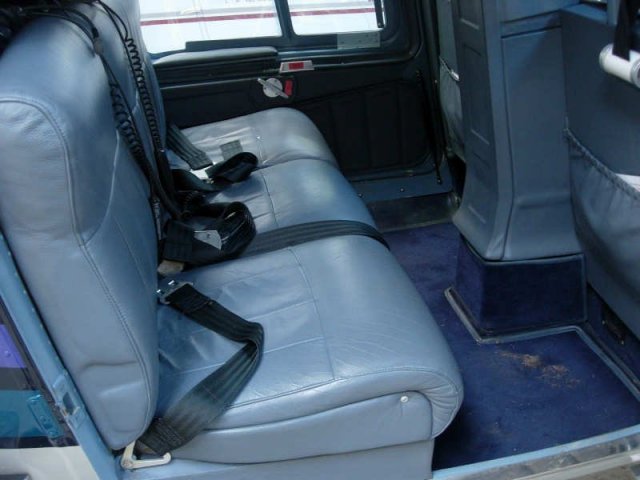

Grey leather seats and doors. Grey headlining in suede/leather. Dark blue (grey piping) carpet.
Details believed to be correct but subject to verification by inspection.
|
Component Status
(as at 7,870 airframe hours) |
| Item |
Life |
Hrs - Retirement |
Hrs - Overhaul |
| Main Rotor Blades (x2) |
5,000 |
1,945 |
- |
| Main Rotor Hub Assembly |
1,200 |
- |
489 |
| Main Rotor Grips (x2) |
4,800 |
4,089 (x2) |
- |
| Main Rotor Mast Assembly |
3,000 |
- |
2,900 |
| Main Rotor Trunnion |
2,400 |
2.900 |
- |
| TT Straps |
1,200 (2 yrs) |
297 (06/08) |
- |
| Swashplate Assembly |
4,800 |
- |
1,705 |
| Main Transmission |
4,500 (1,500 I) |
- |
1,748 (345 I) |
| Hydraulic Pump and Reservoir |
3,600 |
- |
1,649 |
| Freewheel Assembly |
3,000 (1,500 I) |
- |
1,649 (149 I) |
| Tail Rotor Blades (x 2) |
2,500 |
1,849 (x 2) |
- |
| Tail Rotor Yoke |
4,800 |
4,349 |
- |
| Tail Rotor Hub |
2,400 |
- |
1,849 |
| Tail Rotor Gearbox |
6,000 (3,000 I) |
- |
3,248 (248 I) |
| Hydraulic Servos (x 3) |
3,600 |
- |
3,051 (x 3) |
|
|
|
|
| Compressor |
3,500 |
- |
2,788 |
| Impellor |
3,550 (9,150 C) |
2,838 (1,645 C) |
- |
| Turbine Assembly |
3,500 (1,750 I) |
- |
2,788 (1,038 I) |
| Wheel 1 |
1,775 (3,000 C) |
1,063 (1,986 C) |
- |
| Wheel 2 |
1,775 (3,000 C) |
1,063 (1,986 C) |
- |
| Wheel 3 |
4,550 (6,000 C) |
1,773 (1,988 C) |
- |
| Wheel 4 |
4,550 (6,000 C) |
350 (45 C) |
- |
| Fuel Control |
2,500 |
- |
6,120 |
| Governor |
2,000 |
- |
374 |
| Fuel Pump |
2,250 |
- |
3,797 |
| Fuel Nozzle |
2,500 |
- |
2,251 |
| Bleed Valve |
1,500 |
- |
252 |
