1978 Agusta-Bell 206B |
 |
SPECIFICATIONS
| Date of Manufacture: | 1978 |
| Total Airframe Hours: | 6,536 |
Optional Equipment
| High Skids | Particle Separator |
| Wedge Windows | Range Extender |
 |

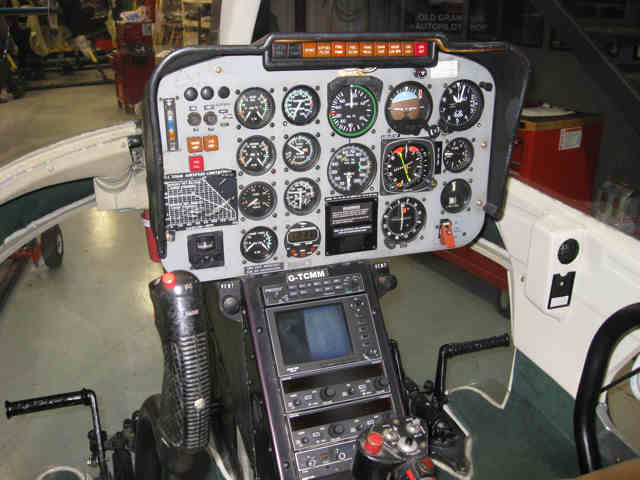

Avionics
| Nav/Com x 2 | Bendix King KY 165A |
| Transponder | Bendix King KT 76A |
| Panel Mounted GPS | Bendix King KMD 150 |
| Astro Tech LC-2 Timer | . |
| PS Engineering Coms Panel | . |
| Datacom | . |
| Sloping Avionics Panel | . |
 |
Exterior
White with dark green fuselage and gold accent.
Interior

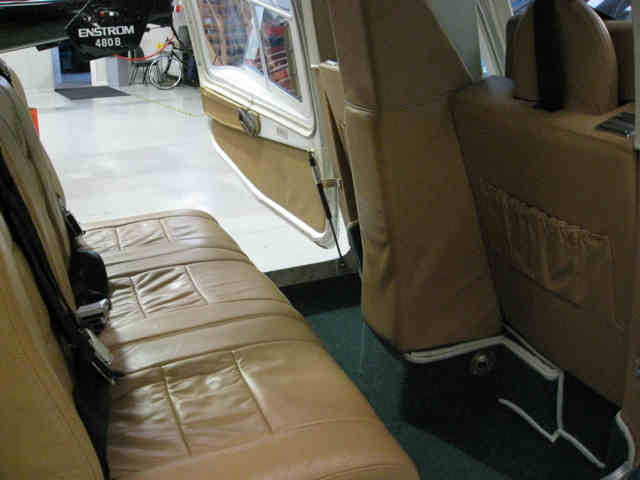

Tan leather interior and matching tobacco carpet.
Details believed to be correct but subject to verification by inspection.
|
Component Status |
| Item | Life | Hrs - Retirement | Hrs - Overhaul |
| Main Rotor Blades (x2) | 5,000 | 3,461 (x2) | - |
| Main Rotor Hub Assembly | 1,200 | - | 624 |
| Main Rotor Grips (x2) | 4,800 | 3,056 | - |
| Main Rotor Mast Assembly | 3,000 | - | 2,569 |
| Main Rotor Trunnion | 4,800 | 3,056 | - |
| TT Straps | 1,200 (2 yrs) | 1,000 (11/08) | - |
| Swashplate Assembly | 4,800 | - | 4,632 |
| Main Transmission | 4,500 (1,500 I) | - | 1,116 (1,069 I) |
| Hydraulic Pump and Reservoir | 3,600 | - | 694 |
| Freewheel Assembly | 3,000 (1,500 I) | - | 2,272 (772 I) |
| Tail Rotor Blades (x 2) | 2,500 | 756/2,233 | - |
| Tail Rotor Yoke | 5,000 | 3,256 | - |
| Tail Rotor Hub | 2,500 | - | 756 |
| Tail Rotor Gearbox | 6,000 (3,000 I) | - | 5,424 (2,323 I) |
| Hydraulic Servos (x 3) | 3,600 | - | 3,307 (x2)/659 |
| Compressor | 3,500 | - | 2,904 |
| Impellor | 3,550 (9,150 C) | 2,599 (7,702 C) | - |
| Turbine Assembly | 3,500 (1,750 I) | - | 2,587 (1,644 I) |
| Wheel 1 | 1,775 (3,000 C) | 1,669 (2,837 C) | - |
| Wheel 2 | 1,775 (3,000 C) | 1,669 (2,837 C) | - |
| Wheel 3 | 4,550 (6,000 C) | 1,877 (2,759 C) | - |
| Wheel 4 | 4,550 (6,000 C) | 3,637 (4,869 C) | - |
| Starter Generator | 1,000 | - | 632 |
| Fuel Control | 2,500 | - | 2,302 |
| Governor | 2,000 | - | 988 |
| Fuel Pump | 2,250 | - | 1,788 |
| Fuel Nozzle | 2,500 | - | 2,299 |
| Bleed Valve | 1,500 | - | 1,137 |
