1981 Bell 206B
JetRanger III

SPECIFICATION

Serial Number: 3300
Date of Manufacture: 1981
Total Airframe Hours: 8,836

Optional Equipment

High Skid Gear Dual Control Provisions
Rotor Brake Front Floor Protectors
Range Extender Standard Instruments
Boot Extender Flitesteps
Hook Provisions Inertia Reel Seat Belts for Aft Seating
Bell Approved Camera Window in floor -

Avionics

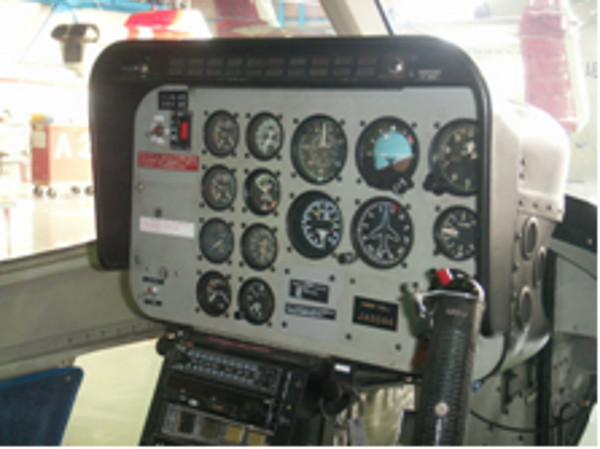

Sloping Panel .
VHF Com King KY 196
ATC Transponder King KT 76A
Encoding Altimeter King KE 127
Comms Selector King KMA 24A
ELT Kannad 406 AF-H

All ADs snd SBs complied with.		 .

Exterior
White with red/orange cheat line.

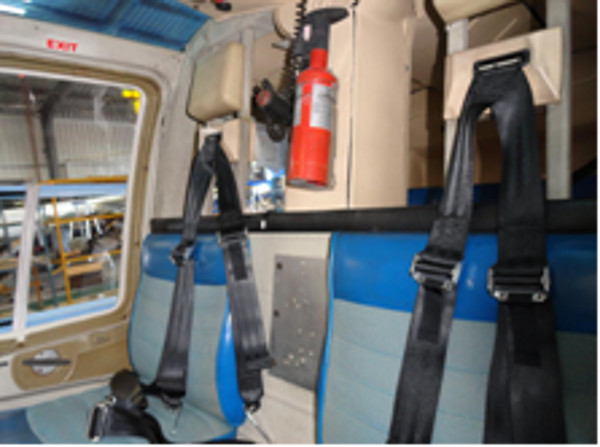

Interior
Blue seats and blue carpet.

Component Status
(as at 5,982 airframe hours)

Item Life Hrs - Retirement Hrs - Overhaul
Main Rotor Blades (x2) 5,000 203 (x2) -
Main Rotor Hub Assembly 1,200 - 1,288
Main Rotor Grips (x2) 4,800 1,437 -
Main Rotor Mast Assembly 3,000 - 592
Main Rotor Trunnion 4,800 1,437 -
Main ROtor Transmission 4,500 - 3,530
Main Rotor Yoke 5,000 - 1,437
TT Straps 1,200 (2 yrs) 1,200 (06/14) -
Swashplate Assembly 4,800 - 696
Freewheel Assembly 3,000 - 3,000
Tail Rotor Blades (x 2) 2,500 1,001 (x2) -
Tail Rotor Yoke 5,000 - 393
Tail Rotor Hub 2,500 - 537
Tail Rotor Gearbox 6,000 (3,000 I) - 5,726
Hydraulic Servos (x 3) 3,600 - 2,292/2,589/2,329

Compressor 3,500 - 433
Impellor 3,550 (9,150 C) 483 (4,888) -
Turbine Assembly 3,500 (1,750 I) - 3,228 (1,478)
Wheel 1 1,775 (3,000 C) 1,503 (2,558) -
Wheel 2 1,775 (3,000 C) 1,503 (2,558) -
Wheel 3 4,550 (6,000 C) 3,307 (4,377) -
Wheel 4 4,550 (6,000 C) 3,307 (4,377) -
Fuel Control 4,000 - 1,786
Governor 4,000 - 688
Fuel Pump 4,000 - 3,245
Bleed Valve 1,500 - 472
