Eurocopter AS350B Squirrel |
|
SPECIFICATIONS
| Date of Manufacture: | 1982 |
| Total Airframe Hours: | 4,176 |
| Registration Number: | G-NUTY |
| Serial Number: | 1490 |
Optional Equipment
| Float Provisions | High Visibility Doors |
| High Crew Back Seats | Dual Controls |
| Swivelling Night Landing Light | . |
 |

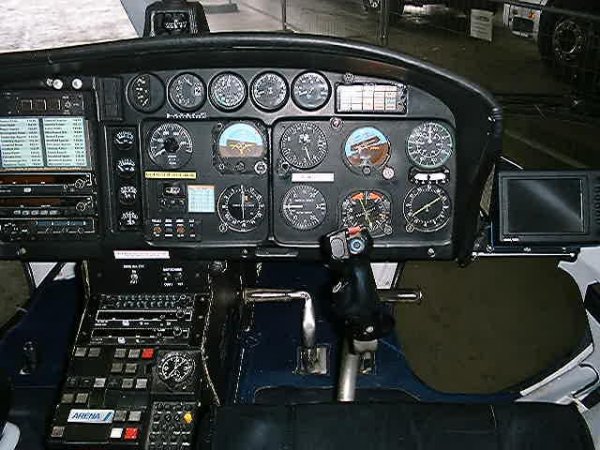

Avionics
| VHF Comms x2 | King KY 196A |
| Standby Horizon | . |
| VOR Nav | King KN 53 |
| Audio Panel | King KMA 24H |
| ADF | King KN 81 |
| Transponder | King KT 76A |
| GPS | Skyforce III Colour GPS |
| Intercomm | 6 Place |
| Headsets x6 | Peltor |
Exterior
Silver metallic with blue stripe. 9/10
 |

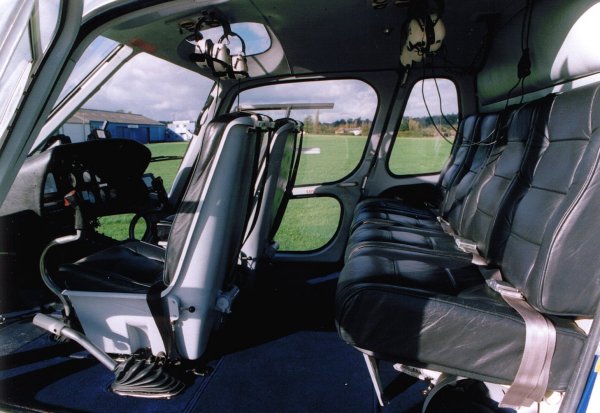

Interior
Black leather upholsery, light grey trim with dark blue Wilton carpet. 7/10.
Location
United Kingdom.
Details believed to be correct but subject to verification by inspection.
| Component Status (as at 4,176 airframe hours) |
| Item | Life | Hrs - Remaining |
| Main Rotor Blades (x3) | 20,000 | 17,263/18,372/15,204 |
| Starflex Body | 2,200 | 734 |
| Spherical Thrust Bearings (x 3) | 6,400 | 5,393 |
| Upper Sleeves (x3) | 4,000 | 2,216/2,246(x2) |
| Lower Sleeves (x3) | 4,000 | 2,246/3,817(x2) |
| Bevel Gear | 3,000 | 2,427 |
| Epicyclic Gear | 3,000 | 832 |
| Tail Rotor Gearbox | 3,000 | 749 |
| Tail Rotor Blade Assembly | 4,000 | 1,748 |
| Hydraulic Servos (x3) | 1,800 | 1,397 |
| T/R Hydraulic Servos | 1,800 | 1,397 |
Engine |
Life | Hrs - Remaining |
| Comp Axial Wheel | 14,000 C | OC (6,402 C) |
| Comp Impellor | 14,000 C | 6,499 |
| Injection Wheel | 8,000 C | 3,188 |
| Module 1 - Accessory Gearbox | OC | OC |
| Module 2 - Axial Compressor | 3,000 | 394 |
| Module 3 - Gas Generator | 2,500 | 1,048 |
| Module 4 - Free Turbine | 2,500 | 129 |
| Module 5 - Reduction Gearbox | 3,000 | 1,454 |
| Freewheel Shaft | 3,000 | OC (1,366 C) |
| FCU | 3,000 | 2,919 |
| No.1 Turbine wheel | 10,000 OC | 1,736 |
| No.2 Turbine wheel | 10,000 OC | 1,736 |
| Free Turbine Disc | 10,000 OC | OC (4,634 C) |
