1984 Eurocopter |
|
SPECIFICATIONS
| Date of Manufacture: | 1984 |
| Total Airframe Hours: | 1,484 |
Optional Equipment
| Dual Controls | Low Skid Gear |
| Dual Windscreen Wipers | Blanks and tie-downs |
 |

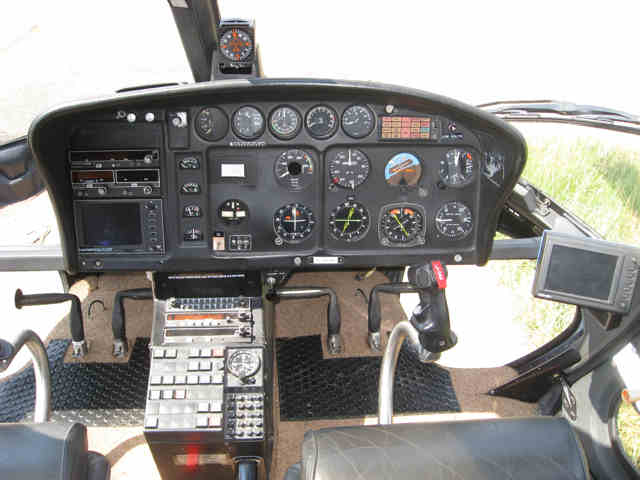

Avionics
| VHF Com 1 | Bendix King KY 196A |
| VHF Com 2/Nav | Bendix King KX 155 |
| ADF | Bendix King KR 87 |
| ATC Transponder | Bendix King KT 79 |
| HSI/Compass System Kit | Bendix King KCS 55 |
| Standby Vertical Card Compass | . |
| Moving Map GPS | Bendix King IIIC |
| Moving Map GPS | Bendix King KMD 150 |
| Intercom | Bendix King KMA 24H |
Exterior
White base with grey stripes
 |

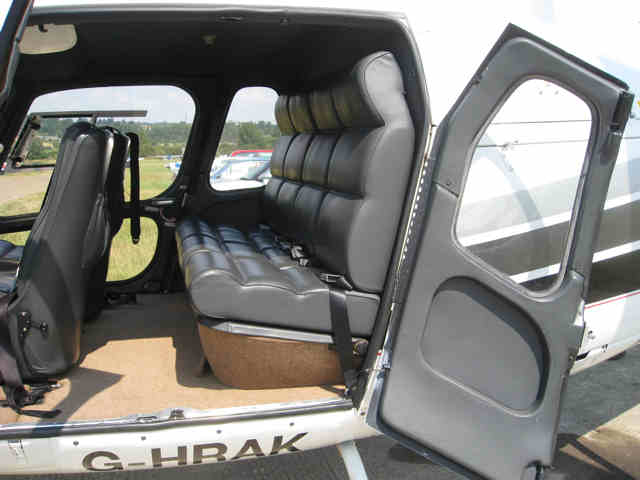

Interior
Dark grey leather seats. Beige carpet
Details believed to be correct but subject to verification by inspection.
| Component Status (as at 1.484 airframe hours) |
| Item | Life | Hrs - Remaining |
| Main Rotor Blades (x3) | 20,000 | 18,515 (x2) 18,932 |
| Starflex Body | 2,200 | 2,130 |
| Spherical Thrust Bearings (x3) | 2,000 | 524 |
| Upper Sleeves (x3) | 4,000 | 2,515 |
| Lower Sleeves (x3) | 4,000 | 2,515 |
| Bevel Gear | 3,000 | 2,837 |
| Epicyclic Gear | 2,000 | 1,837 |
| Tail Rotor Gearbox | 3,000 | 2,990 |
| Tail Rotor Blade Assembly | 4,000 | 1,993 |
| Tail Rotor Drive Shaft and Bearings | 3,600 | 3,494 |
| Hydraulic Servos (x3) | 1,800 | 438 (x1) 1,780 (x2) |
| T/R Hydraulic Servo | 1,800 | 1,780 |
| Swashplate Bearing | 2,400 | 915 |
Engine |
Life | Hrs - Remaining |
| Comp Axial Wheel | 14,000 C | 10,609 C |
| Comp Impellor | 14,000 C | 13,335 C |
| Comp Rotor | 14,000 C | 13,335 C |
| Injection Wheel | 10,000 C | 6,609 C |
| Module 1 - Accessory Gearbox | OC | (180 months) |
| Module 2 - Axial Compressor | 6,000 | 5,636 (180 months) |
| Module 3 - Gas Generator | 3,000 | 2,636 (180 months) |
| Module 4 - Free Turbine | 3,000 | 2,636 (180 months) |
| Module 5 - Reduction Gearbox | 3,000 | 2,636 (180 months) |
| Freewheel Shaft | 12,000 | 11,980 |
| FCU | 3,000 | 2,679 (29 months) |
| No 1 Turbine Wheel | 10,000 C | 9,960 C |
| No 2 Turbine Wheel | 10,000 C | 6,609 C |
| Free Turbine Disc | 10,000 C | 6,609 C |
12 Year Inspection to be completed August 2008.
New EASA Certificate of Airworthiness to be issued August 2008.
