Bell 407 |
|
SPECIFICATIONS
| Date of Manufacture: | 1999 |
| Total Airframe Hours: | 1,320 |
| High Skids with Flitesteps | Dual Controls |
| Air Comm Heater/Ventilation | Door Openers |
| Particle Separator | Nickel Cadmium Battery |
| Spacesaver and Floor Protectors | Dual Rotor Brake |
| Floor Protectors | Tail Rotor Lock Out Kit |
 |

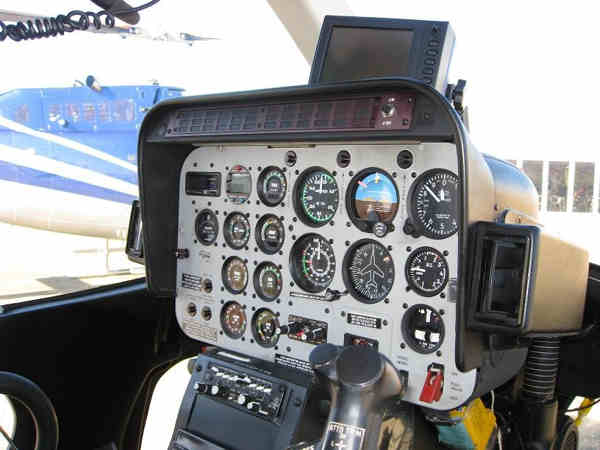

Avionics
| VHF Comm x2 | King KY 196A |
| Transponder | King KT 76C |
| Transceiver VHF FM | NAT NPX |
| Attitude Indicator DI and OAT | . |
| ELT | Kannard 406 |
| 12 Disc CD Autochanger | JVC (disconnected) |
| GPS | Skymap IIIC |
| Audio Panel | NAT AMS 42F |
| Intercom | 7 Place |
Exterior
White base with maroon stripe leading to tail and silver accent stripe
 |

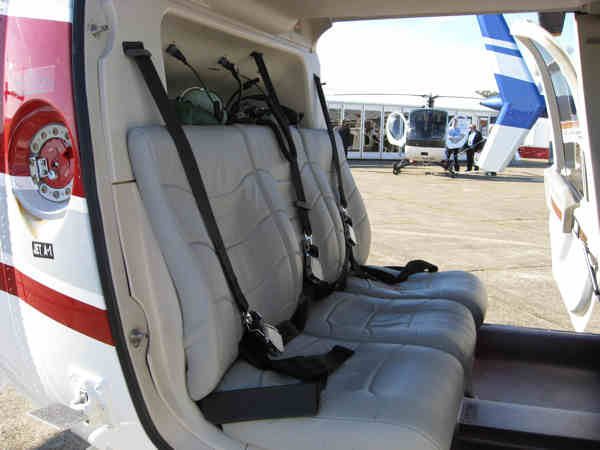

Interior
Grey leather upholstery with black seat belts and grey carpet.
Details believed to be correct but subject to verification by inspection.
|
Component Status |
| Item | Life | Hour Remaining |
| Main Rotor Blades (x4) | . | OC |
| Main Rotor Hub Assembly | 2,500 | 1,180 |
| Main Rotor Mast Assembly | 2,500 | 1,180 |
| Main Rotor Mast | 2,500 | 1,180 |
| Main Rotor Yoke | . | OC |
| Transmission Assembly | 2,500 | 1,180 |
| Swashplate Assembly | 2,500 | 1,180 |
| Swashplate Inner and Outer Rings | 5,000 | 3,680 |
| Freewheel Assembly | 2,500 | 1,180 |
| Tail Rotor Blades (x 2) | 5,000 | 3,680 |
| Tail Rotor Yoke | 5,000 | 3,680 |
| Tail Rotor Hub | 5,000 | 3,680 |
| Tail Rotor Gearbox | 2,500 | 1,180 |
| Servos Support Assembly | 10,000 | 8,680 |
| Compressor | OC | OC |
| Gearbox | OC | OC |
| Impellor | 7,500 (15,000 C) | 6,180 |
| Turbine Assembly | 2,000 | 1,900 |
| Wheel 1 | 2,025 (3,000 C) | 705 |
| Wheel 2 | 2,025 (3,000 C) | 705 |
| Wheel 3 | 4,550 (6,000 C) | 4,450 |
| Wheel 4 | 4,550 (6,000 C) | 4,450 |
| HMC | 2,500 | 1,180 |
| Starter Generator | 1,000 | 200 |
| Fuel Nozzle | 2,000 | 1,900 |
| Bleed Valve | 1,500 | 180 |
Details believed to be correct but subject to verification by inspection. |
Contact Richard Anniss/Jan Townend at RCR Aviation Limited |
